EC100

Specifications

EC100

Top-seller in automatic cleaners for heat-not-burn cigarette holders

The first electric cleaner in cleaning heat-not-burn cigarette holders in the world
Patented and all rights reserved

Suitable for most heat-not-burn cigarette holders made by ELIO and other brand-name manufacturers

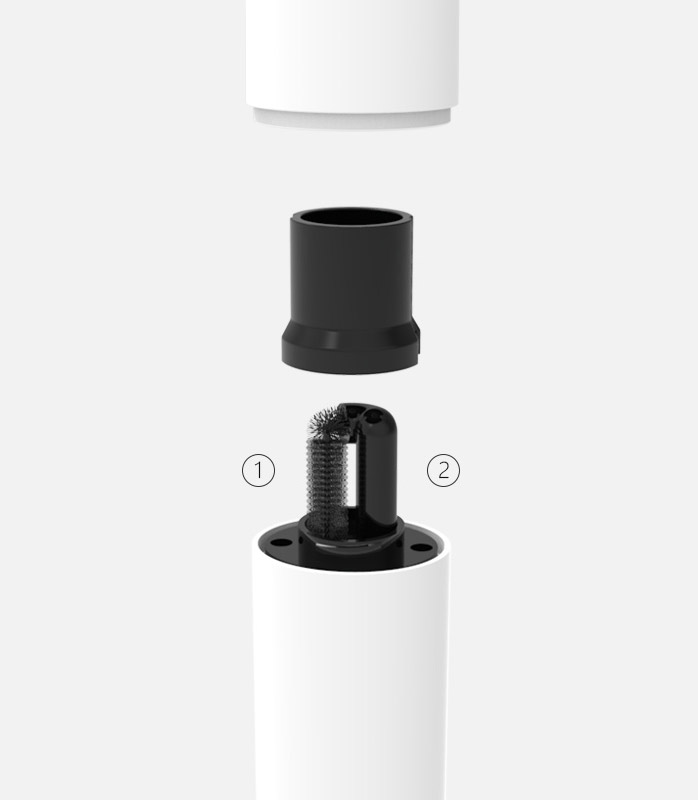

Patented muiltifunctional cleaning brush

① Removal of tobacco residues　
② Absorption of tar

EC100 Specifications
Instructions
  • 1. Ensure that the ELIO heating device to be cleaned is powered off and its heater has cooled down. Remove completely the cap from the device, as well as the cover cap from the EC100

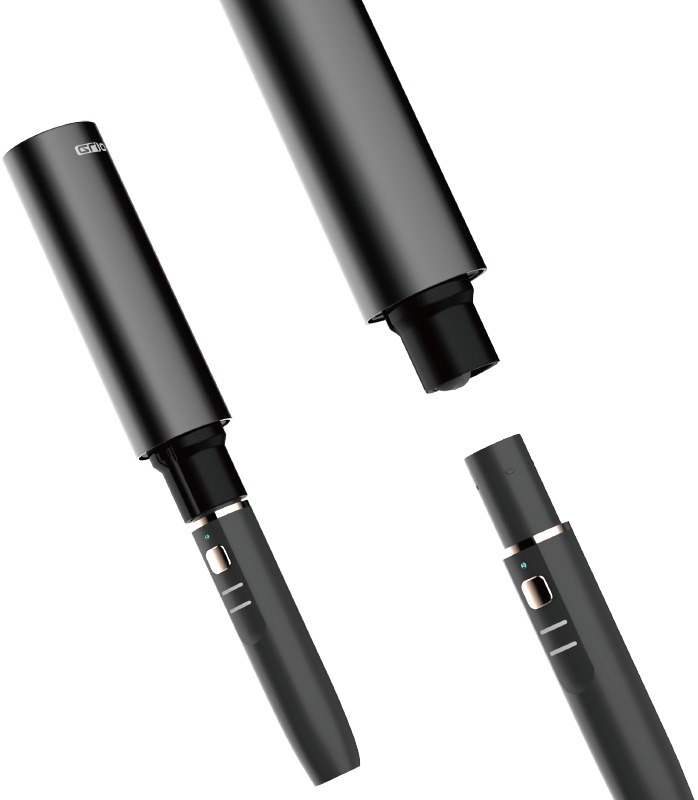

  • 2. Insert the cleaning brush into the mouthpiece of the ELIO heating device, with the brush casing covering outside the top of the device
  • 3. Once the cleaning brush reaches the bottom of the ELIO heating device, press it firmly and the EC100 will start cleaning automatically. It takes approximately 5-10 seconds to complete the cleaning process


To ensure optimal cleaning effects, the cleaning brush needs to be replaced once it gets dirty, or after using it for one week, or 10 cleaning procedures


Brush replacement

  • 1. Rotate the brush casing counterclockwise to separate it from the EC100
  • 2. Pull out the cleaning brush to disengage its magnetic contacts with the EC100
  • 3. Install a new cleaning brush into the EC100 through the aforementioned magnetic contacts
Dimensions

Power

Battery Type：Rechargeable polymer lithium battery
Battery Capacity：250 mAh
Input Voltage：5V
Input Current：0.5A

Desired Working Temperatures

10° to 35°C ( 55° to 95°F)
